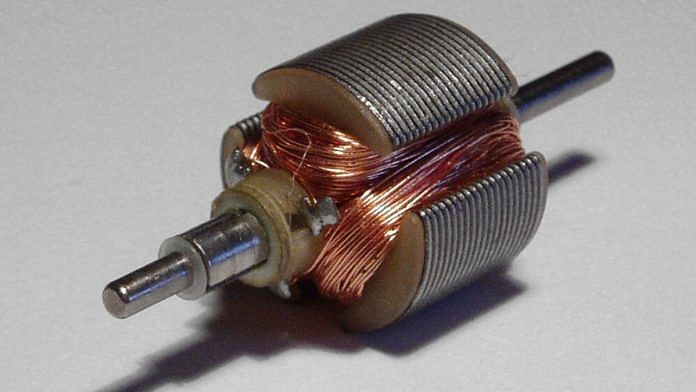

The world’s simplest engines are electric motors. The shaft or rotor is the only moving component in them. It typically has a cylindrical form and is supported at the ends by simply two bearings. This rotor is enclosed in a case that has windings or electrical coils all around it. To keep a tiny air gap between itself and the stator windings, the rotor’s end bearings rest on the end covers.
Innovative Technology In AC Motors
Alternating current (AC) supply generates a revolving magnetic field as it is transmitted through the stator. To cause the rotor to revolve, this field interacts with it and creates a magnetic coupling with it. However, the rotor designs and rotational principles used by various types of motors vary. This fundamental layout has remained the same because it is so trustworthy.
Improvements in EMs have just recently begun to take place in an effort to get more value from them. The basics, however, have essentially not changed. Rather, it had technological gimmicks like a “variable frequency inverter drive” attached to it. Due to the technology’s ability to fully use the efficiency and energy density potential of electromagnetic fields, it has already revolutionized a wide range of sectors. However, in order to stay up with the rapid speed of development and strict efficiency requirements of the future, EMs must fundamentally alter to fulfill these efficiency goals, relying on electronics only when it is necessary, and evolve structurally to remain future-proof.
New Developments in DC Motors
DC motors are now developed into brushless dc motor, which are already fairly efficient by nature, designers nowadays are under increasing pressure to increase their design’s efficiency and differentiate themselves in a crowded market. For instance, lowering total energy use and improving thermal control can accomplish this. Reduced upkeep and equipment capacity can both contribute to the desired outcomes.
The key element that controls the speed and torque of the motor is the brushless DC motor speed controller. It has the ability to start, halt, and reverse spin.
In order to properly comprehend the principles of the motor speed controller, we must understand the concept of a brushless motor first; Its principal parts are as follows:
- A stator with windings that generate a magnetic field when activated.
- An actuator or rotor consisting of fixed and frequent electromagnets.
What Features To Consider In BLDC Motor?
- The design life Grease type, bearing size, and appropriate bearing support are the main determinants of bearing life.
- When the stator windings are a part of the motor casing, the brushless motors’ capacity to dissipate heat is at its maximum.
- The building must be tough enough to endure the stresses of operating heavy-duty transit buses.
Sensor Technology in Motor Controllers
In speed controllers of brushless DC motors, certain sensors can be used. Position sensors and sensorless techniques are both options for making measurements.
For sensors, there are several options, including:
- Sensors that use the hall effect
- Propeller analogue inputs
- Variable-reluctance sensors
- Detection using electro-optics
A Long-Lasting Electronic Solution
The brushless DC motor’s design features are what give it its key advantages. Electronic commutation is used to enable better current switching.
Since electronics are employed instead of mechanical components that break down, it provides a low-maintenance and long-lasting solution. Furthermore, there is less power loss, electromagnetic interference (EMI), and noise due to the absence of brushes.
Applications In The Industry
These motors are widely utilized in systems and devices with extended operating lifetimes, such as:
- Networking equipment
- Electronic goods
- Aerial vehicles
- Engineering products
The setup allows BLDC motors to drive compact, high-performing devices, which also broadens their variety of applications.
Unexpected Hurdles & Challenges
You could run into certain difficulties when building a brushless DC motor controller circuit. In accordance with the capabilities and intended use of the motor, you must choose the proper hardware and implement the necessary algorithms.
For instance, BLDC motor controllers are used in power electronics to manage large currents and voltages. They require a high switching frequency.
Any brushless motor controller will find that placing the rotors precisely is one of their biggest challenges. Take measurements either with or without a sensor to do this.
Position sensors provide a rather straightforward detection approach that you may use without complex control algorithms. However, their use makes the motor’s setup and maintenance more difficult.
Whereas a lot relies on how the measurement method is used in certain cases. You may combine several approaches to get better accuracy.
Designing brushless DC motor controllers may be expensive and need creative hardware and software development techniques. More advancements are anticipated as the goods required for design continue to evolve.
Developers will keep looking into novel lubrication, bearing cages, shields, seals, and bearing metals as we continue to look at ways to extend bearing life. Electronics are always evolving and getting better. Although there haven’t been any major technological advances, they are always being reviewed, and our devices are getting better and better on a small scale.
